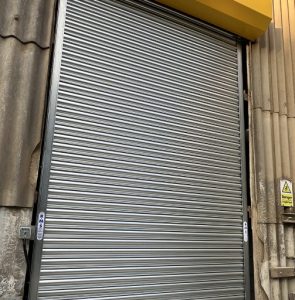

Traditional Roller Shutters
Industrial Roller Shutter Doors are suitable for a variety of applications and are both economical and robust, making them one of the most popular type of industrial door on the market.
Each door is individually tailored to suit the customer’s requirements and can be manually or electrically operated.
Roller shutter doors can be manufactured up to a size of 64 square metres.
All doors are individually tailored to suit the customer’s own requirements and can include a range of special features.
Our standard 3” profile comprises interlocking galvanized steel slats which form a continuous hinge for maximum strength and security.

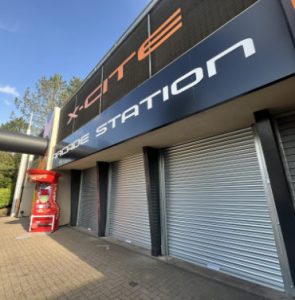

Available in 0.7mm (22swg), 0.9mm (20swg) and 1.2mm (18swg) solid galvanised steel as standard, but also in a Perforated, Brick bond or Inline punched pattern for better airflow and visibility for applications such as shopfronts, car parks and other commercial buildings.
This can be powder coated to any standard RAL.
We also offer the full P200 LG Plastisol Colour range in solid, punched or perforated patterns in 3″ 22swg (0.7mm) concave lath, which can match the look of any building exterior or company theme or branding.
We also offer a limited range of P200 LG Plastisol colours in 3″ 20swg (0.9mm) concave lath for larger applications, typically agricultural buildings or windy environments by the coast.
Technical Specification
Barrel
Constructed from a mild steel tube which encases the counter balance spring(s). The castings mounted within the barrel have either oil light bushes or sealed roller bearings to allow the barrel to run freely on the support shafts.
Curtain
Constructed from 75mm wide traditional lath section, the gauge of which is determined by the size of the door. A galvanised T-section bottom rail is fitted to the bottom of the curtain.
Guides
Constructed from galvanised rolled sections, suitably sized for the application, which in turn are secured to mild steel angles. Wind locked guides may be fitted if the position of the door is susceptible to adverse weather conditions.
Standard Finish – Guides galvanised, angle one coat of silver primer unless otherwise specified.
End Plates
Suitably sized for the application and no less than 5mm thick, the end plates are sited above the guide angles. Their purpose is to support the barrel mechanism.
Standard Finish – One coat of silver primer.
Locking
A locking box is supplied as standard with all industrial roller shutter doors. It’s purpose being to lock off the hauling chain/manual override chain.
