High Speed Doors
As the name suggests, these doors are fully automated and provide rapid access in and out of buildings. They are ideal for internal or external openings (up to 36sq.mtrs) when ease of access is required in order to aid material flow and control temperatures. A wide range of safety features are available.
These can be finished in a standard galvanised finish to the curtain and primmed finished to all supporting steelwork or fully powder coated to any standard RAL or BS colour, certain plastisol finishes are also available to the curtain.
The following features are standard equipment on these types of doors:
- Timed Return
- Photo Electric Safety Beam
- Optical Safety Edge
Technical Specification

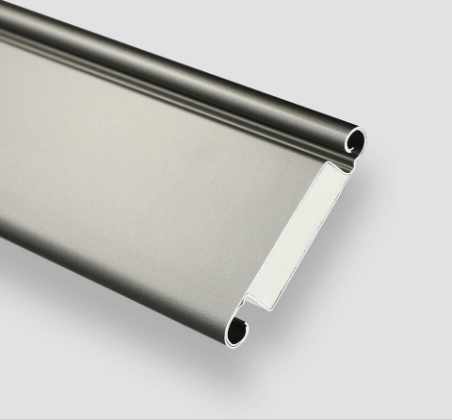

100mm (4”) Twin Skin Insulated Roller Shutter Lath
Constructed from a mild steel tube, suitably sized for the application, which encases the counter balance spring(s). The castings mounted within the barrel are fitted with high quality sealed roller bearings which permits the barrel to rotate freely on the support shafts.
100mm twin skin insulated lath, is a lath system that addresses the heat loss issue associated with traditional single skin roller shutter doors. This system is specifically designed to accommodate a rigid CFC free polystyrene infill providing excellent thermal benefits, reducing heat loss and lowering energy usage. This helps maintain the temperatures inside a premises irrespective of outside conditions.
Manufactured from two skins of solid 100mm section, with one strengthening rib running along the face of the profile, our 100mm insulated lath uses a continuous nylon or pressed steel endlocking system, along with a yellow weather proof bottom retainer and safety edge rubber weather seal increasing the performance of the door.
We can also offer:

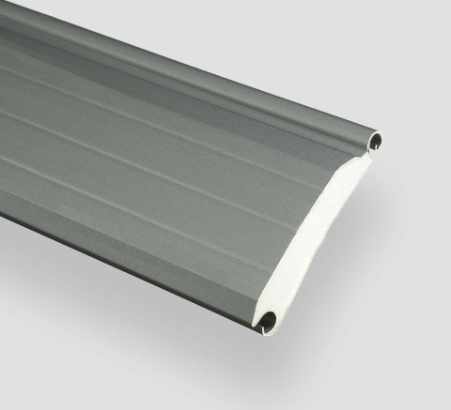

95mm Foam Filled Insulated Lath
Our 95mm insulated foam filled lath helps reduce the heat loss issue associated with traditional single skin roller shutter doors. Our energy saving product is manufactured from a single strip of material, with a full polyurethane central core offering outstanding thermal and acoustic properties.
Superior to other insulated lath options, this fine-pored PU rigid foam infill bonds to the internal face of the section offering superb strength and rigidity. With its lightweight curved design our profile offers a very compact wrap, reducing deflection and allowing for a smaller barrel and potentially, drive unit. this is perfect for industrial applications such as warehousing, distribution centres/loading bays, agricultural buildings.
This is available in a wide range of P200 LG Plastisol colours to match the look of any building or branding, or alternatively we offer a hot dip galvanised steel version which is suitable for powder coating nonstandard colours.
Accompanying this lath is also our self-locking guide and brush system ensuring quiet operation.
Optional extras:
- Traffic Light system both sides of the opening
- Ground inductive loop opening
- Radar opening, these can also be upgraded to presence detection which detects obstacles left within a defined area to hold the door open for safety reasons
- Handheld remote control
- Forklift Truck mountable remote controls
